圆球PCD铣刀

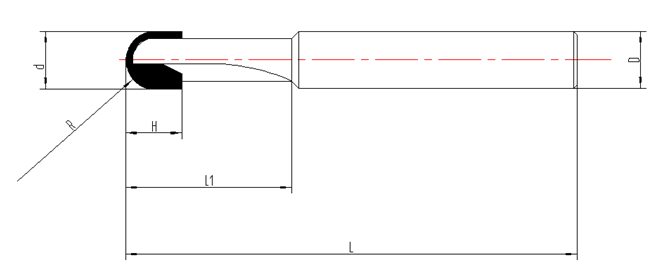

DIAGRAM:
SPECIFICATIONS:
D 柄径 | d 刃径 | L 全长 | L1 切深 | H 刃长 | Z 齿数 | R 半径 |
| 6 | 3 | 50 | 5~8 | 3 | 2 | 1.5 |
| 6 | 3.5 | 50 | 5~8 | 3 | 2 | 1.75 |
| 6 | 4 | 50 | 8~10 | 4 | 2 | 2 |
| 6 | 5 | 50 | 8~10 | 5 | 2 | 2.5 |
| 6 | 6 | 50 | 10~15 | 6 | 2 | 3 |
| 6 | 7 | 50 | 10~15 | 6 | 2 | 3.5 |
| 8 | 8 | 60 | 15~20 | 7 | 2 | 4 |
| 8 | 8.5 | 60 | 15~20 | 8 | 2 | 4.25 |
| 8 | 9 | 60 | 15~20 | 8 | 2 | 4.5 |
| 10 | 10 | 70 | 15~20 | 8 | 2 | 5 |
| 10 | 11 | 70 | 15~20 | 9 | 2 | 5.5 |
| 12 | 11 | 70 | 15~20 | 9 | 2 | 5 |
| 12 | 12 | 70 | 18~25 | 10 | 2 | 6 |
| 14 | 14 | 70 | 18~25 | 10 | 2 | 7 |
| 16 | 15 | 70 | 22~28 | 11 | 2 | 7.5 |
| 16 | 16 | 70 | 22~28 | 12 | 2 | 8 |
